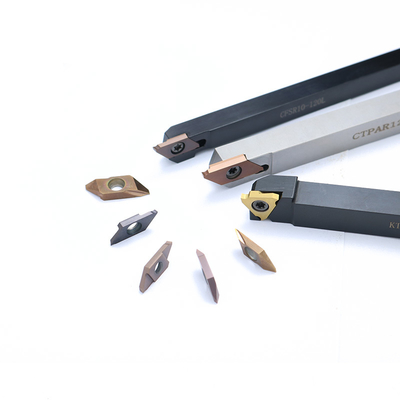

TKF16 Carbide Inserts for CNC Parting-off and External Grooving with Replaceable and Indexable Bits

TKF16 Application Field

The TKF16 is a well-regarded type of CNC carbide insert specifically designed for parting-off and external grooving of small diameter steel components. It is primarily utilized for grooving and cutting-off tasks on lathes and CNC machines, available in various shapes and cutting angles.

Carbide inserts are replaceable and typically indexable tools made from cemented carbide, suitable for machining steels, cast iron, high-temperature alloys, and nonferrous materials. These inserts enable faster machining processes and produce superior finishes on metal parts.

Production Standard

This series of inserts primarily adheres to the standards of Kyocera’s TKF16 series. Specific size details can be customized based on individual customer requirements.

The TKF16 series is a renowned line of carbide grooving inserts from Kyocera. The Drow standard production sizes and stock specifications are based on this established Kyocera series.

For detailed specifications, please refer to the section below.

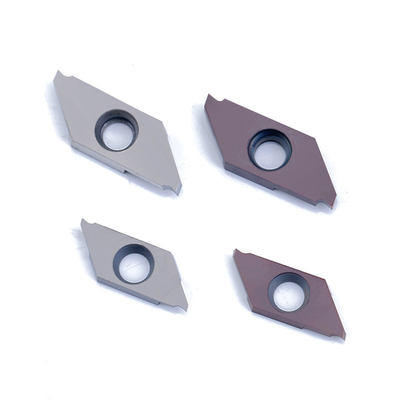

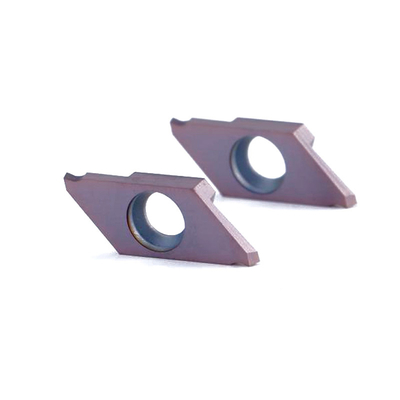

Product Details: TKF16

• Material Quality: Made from 100% original carbide powder, ensuring excellent wear resistance and toughness.

• Dimensions:

  • Cutting Width (CW): 1.5–2.0 mm
  • Cut Diameter (CUTDIA): 16 mm
  • Radius Edge (RE): 0–0.08 mm
  • Positive Side Angle (PSIRR): 0–20°

• Coating Technology: Advanced coatings will be tailored to your specific application, enhancing both corrosion and wear resistance.

• Fine Grinding Process: The insert surface features high smoothness and exceptional cutting edge quality, effectively reducing cutting resistance and friction loss.

• Perfect Fit: Precision-engineered edge strips minimize the risk of micro-vibration during processing.

• Applicable Materials:

  • Uncoated Inserts: Ideal for aluminum, non-ferrous metals, and non-metallic materials.
  • Coated Inserts: Suitable for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.

• Customization: If our standard stock does not meet your specific needs, please provide CAD or 3D drawings for your inquiry.

• Production Quality: All inserts are manufactured using high-end EU processing equipment. For further details, please refer to the “Entire Production Quick View” section.

Product Features

1. Edge Protection: Chamfering and tip-arc processing enhance the durability of the cutting edge, preventing fractures and ensuring a smooth finish on the workpiece.

2. Precision Machining: Utilizes Swiss 5-axis machining for R angle processing and passivation treatment, achieving high precision without any burrs.

3. High-Performance Coating: Features a composite coating that provides a super hard and smooth surface for enhanced performance.

4. Efficient Chip-Breaker Design: Engineered for optimal cutting efficiency, ensuring excellent performance during operations.

5. Accurate Dimensions: High precision ensures a perfect fit in tool holders, significantly reducing the likelihood of micro-vibration during machining.

6. Superior Material Quality: Base materials sourced from Europe offer improved oxidation and wear resistance.

7. Customizable Designs: Various dimensions, coatings, chip-breaker designs, and material grades are available to meet specific needs.

Carbide inserts produced by Drow deliver efficient machining and extended tool life, receiving positive feedback globally.

Product Specification:

Entire Production Quick View:

1.Use 100% original carbide powder to sinter to get the integral insert blank.

2.Flat grinding machining.

3.Surrounding grinding machining.

4.Create insert cutting edge.

5.Chamfering and tip-arc processing of the insert cutting edge.

6.Composite Coating.

Quality Inspection:

1.Checked carefully by experienced staff.

2.Microscope check.

3.Swis edging
4.German forging difference process detection
5.Edge passivation detection
6.Coreless grinding

Why choose us:
1.Technical innovation: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: Short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality system: Triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .

FAQ

Q1:Are you a factory or trading company?
A1: We are a professional manufacturer of precision hardware tools industry for tens of years. Welcome to visit our company.We guarantee our products are factory price, very cheap and competitive.

Q2: Who are we?
A:We are based in Guangdong Province, China, start from 2010,sell to Western Europe(10.00%),North America(20.00%),Eastern Europe(20.00%),Southeast Asia(40.00%),Africa(10.00%). There are total about 51-100 people in our factory.

Q3. Can you send products to our Forwarder in China?

A: Yes,if you have Forwarder in China,we will glad to send products to him/her.

Q4: What about the package?
A: We use plastic boxes to pack our products, and filled plastic is shockproof and transported in cartons. also It can make as you need and depend on the shapes of the product.

Q5:Is your company accept customization?

A: OEM and ODM are available. And we have our own professional R&D team servicing for you.

Q6: What's your delivery way?

A: According to the requirements of customers,we will provide the best transportation service
